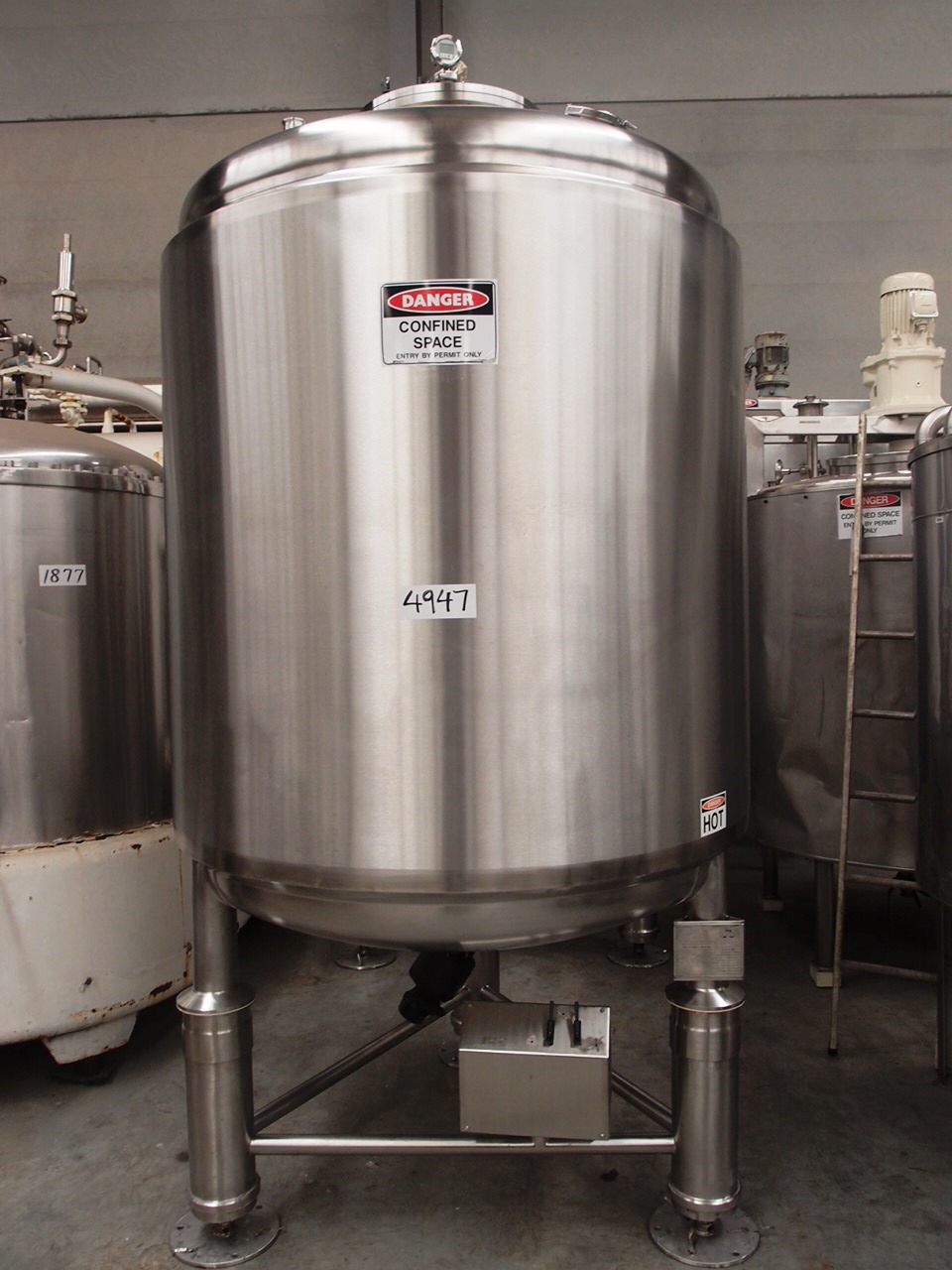

Unit is a stainless steel vertical pressure vessel.
Capacity: 3,500Lt.
Dimension: 1550mm Dia x 1750mm H.
Brand: NDA Engineering.

Vessel Design Code: AS1210-1997. Class: 26.
Maximum Design Pressure: 350 KPA.
Minimum Design Pressure: -101 KPA.
Design Temperature: 150 Deg C.
Hydro Test Pressure: 543 KPA.
Stamp No. 133-U-5907.

The vessel is ex-pharmaceutical and has a dished top with a centre bolted manway.
Dished bottom fitted air actuated Alfa-Laval diaphragm valve 38mm dia.
The vessel has fully welded stainless steel insulation and is mounted on load cells.
The vessel is also fitted with a hinged inspection manway and digital temperature gauge.
Overall height: 3200mm.
