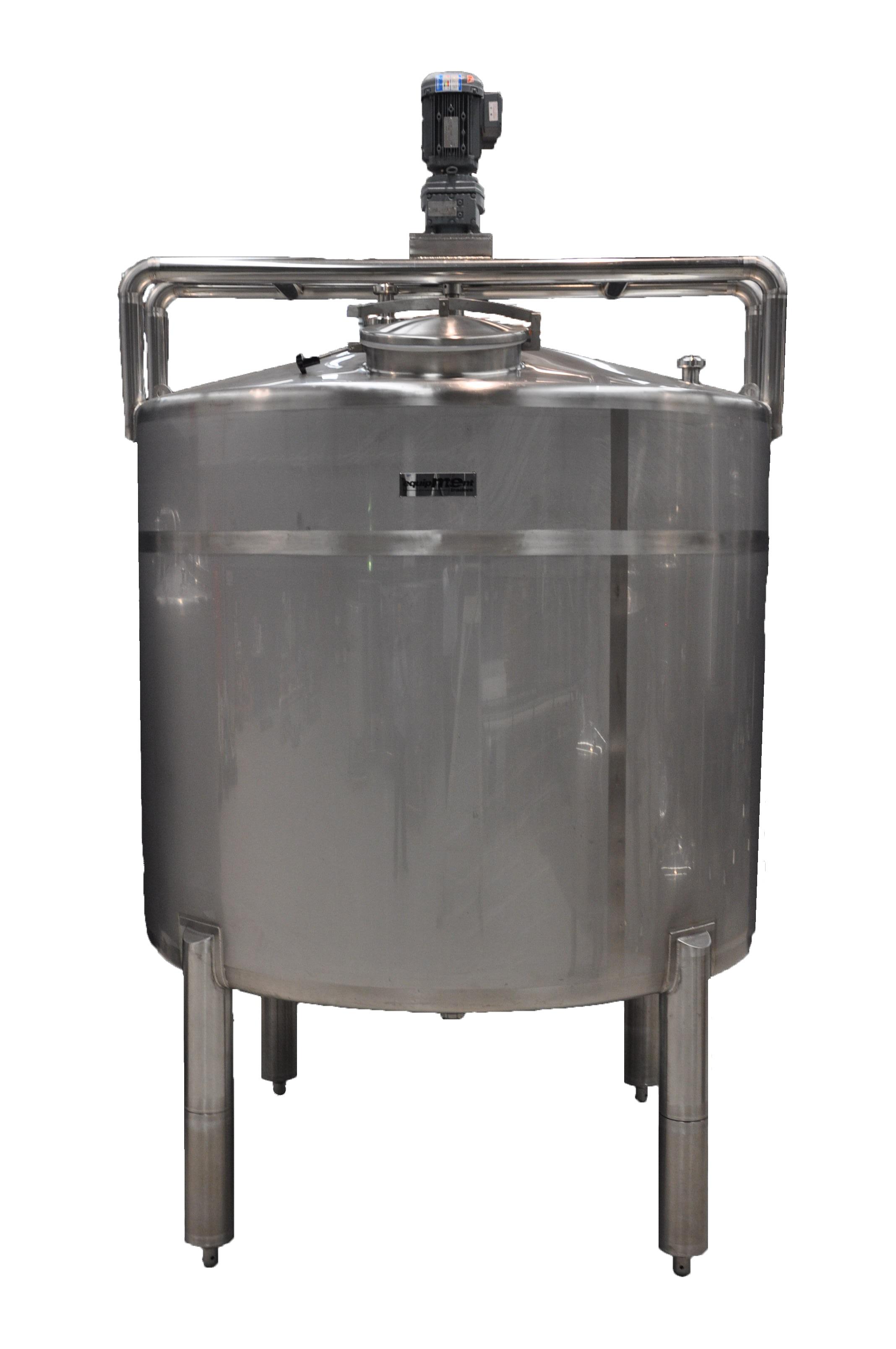

The tank has an enclosed conical top with a top-mounted 430mm dia clamped manway.
Stainless steel centre-mounted pipe bridge with top-mounted Sew geared twin paddle agitator (4.0 kW @ 86rpm, 415V).
Mixing blades are 600mm W.
Stainless steel centre mount spray ball, top-mounted 50mm dia product infeed tube, top mount stainless steel vent.
Stainless steel 75mm W internal mixing baffles.
15 degree conical bottom with 50mm dia centre discharge.
Stainless steel polished legs with cross bracing on compensation pads and adjustable feet.
Material: 304 Stainless steel, 2B finish.
External and internal tank welds are ground and polished.
Material Thickness: 2.5mm walls and 2.5mm top & cone.
Capacity: 5,000Lt.
Dimension: 2000mm Dia x 1600mm H.
Overall tank height: 3465mm.
