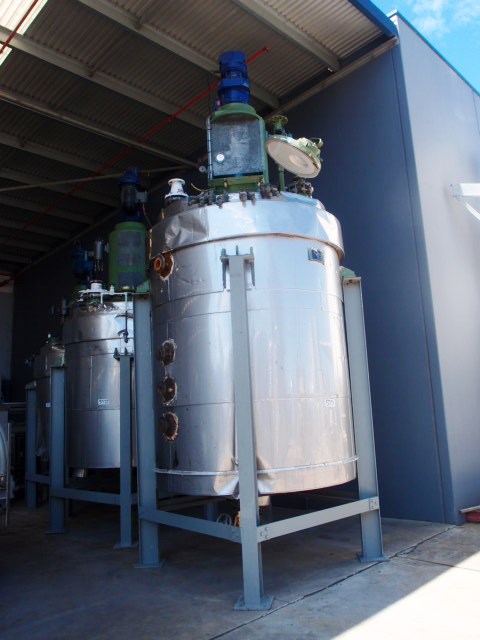

Pressure Vessel Tank (Glass Lined & Jacketed),

Capacity: 6,300Lt

Dimension: 2100mm Dia x 1860mm H

Please see "More Information" below.

Unit is a glass lined jacketed mixing batch reactor with stainless steel pop riveted insulation.

Unit is complete with Carbone Lorraine graphite condenser.
The reactor is fitted with a centre mounted anchor stirrer driven by a SEW 11Kw @ 6-33 RPM variable speed, 415V flameproof gear motor.

Plate Details:

Manufacturers No. 57424.

Year: 1988.
Weight: 8070 Kg.
Code: AS1210 Class 2A.

Shell Design Pressure: 600 KPA/FV.
Jacket Design Pressure: 600 KPA/FV.
Shell Test Pressure: 900 KPA.
Jacket Test Pressure: 900 KPA.
Shell Nominal Capacity: 6300 Lt.
Shell Total Capacity: 8215 Lt.
Jacket Total Capacity: 735 Lt.
Shell Design Temp.: 10-200 Deg C.
Jacket Design Temp.: 10-200 Deg C.
