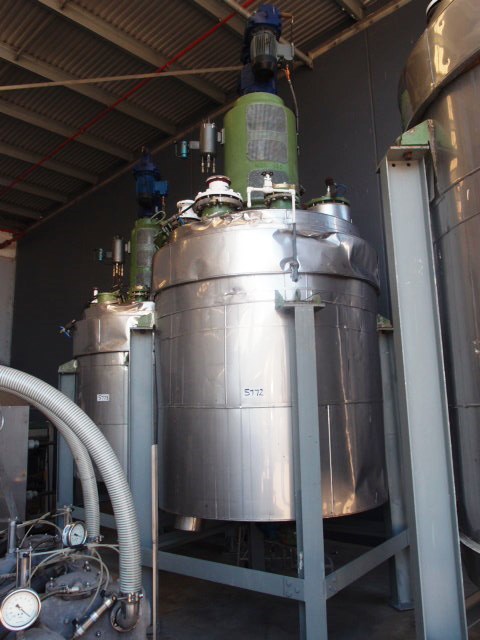

Unit is a glass-lined jacketed mixing batch reactor with stainless steel pop-riveted insulation. Capacity: 4,000Lt Dimension: 1900mm Dia x 1417mm H Unit is complete with Carbone Lorraine graphite condenser. The reactor is fitted with a centre mounted anchor stirrer and is driven by a SEW 7.5Kw @ 6-36 RPM variable speed, 415V EXD flameproof gear motor.
Plate Details: Manufacturers No. 57423. Year: 1988. Weight: 60000 Kg. Code: AS1210 Class 2A.
Shell Design Pressure: 600 KPA/FV. Jacket Design Pressure: 600 KPA/FV. Shell Test Pressure: 900 KPA. Jacket Test Pressure: 900 KPA. Shell Nominal Capacity: 4000 Lt. Shell Total Capacity: 5390 Lt. Jacket Total Capacity: 525 Lt. Shell Design Temp.: 10-200 Deg C. Jacket Design Temp.: 10-200 Deg C.
