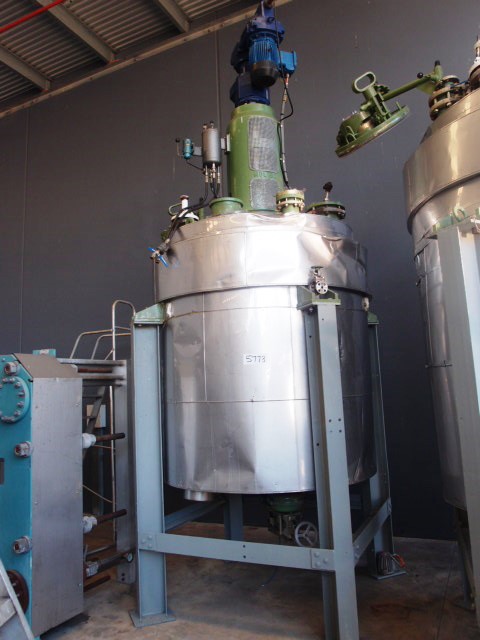

Unit is a glass-lined jacketed mixing batch reactor with stainless steel pop-riveted insulation. Capacity: 2,500Lt Dimension: 1700mm Dia x 1757mm H Unit is complete with Carbone Lorraine graphite condenser. The reactor is fitted with a centre mounted anchor stirrer and is driven by a 5.5Kw @ 8-51 RPM, 415V EXD flameproof gear motor.
Plate Details: Manufacturers No. 574422. Year: 1988. Weight: 4150 Kg. Code: AS1210 Class 2A.
Shell Design Pressure: 600 KPA/FV. Jacket Design Pressure: 600 KPA/FV. Shell Test Pressure: 900 KPA. Jacket Test Pressure: 900 KPA. Shell Nominal Capacity: 2500 Lt. Shell Total Capacity: 3485 Lt. Jacket Total Capacity: 380 Lt. Shell Design Temp.: 10-200 Deg C. Jacket Design Temp.: 10-200 Deg C.
