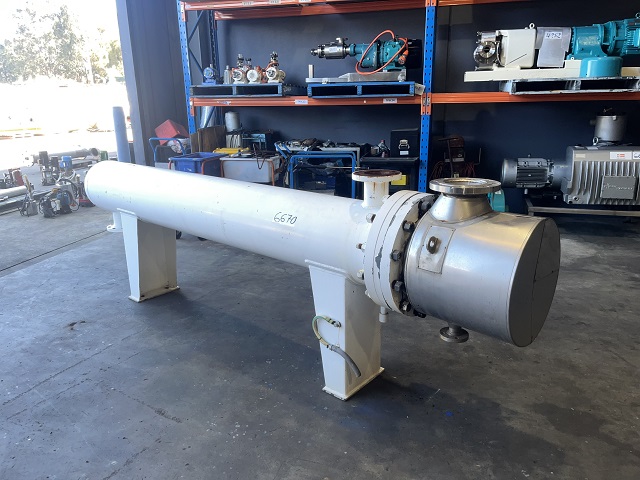

Unit is a mild/stainless shell & tube heat exchanger.
400mm Dia x 2800mm L
(Shell: Material - Steel, Design Pressure - 1005kPa, Design Temp - 150 Degrees C, Design Code - AS1210, Shell Inlet/Outlet: 100mm Dia)
(Tubes: Material - Stainless Steel, Test Pressure - 1575kPa, Number of tubes - 56, Diameter of tubes - 25mm, single pass, Tube Inlet - 150mm Dia, Tube Outlet - 100mm Dia)
Overall Footprint: 560mm W x 3500mm L x 1170mm H
