IBC Mixing Station - Fast Speed

IBC Mixing Station - Fast Speed

Availability: In stock

Item no:
LAIBC240
Brand:
ME New Equipment
Model:
LAIBC240




The Australian made IBC Mixer is a portable and convenient method for fluid mixing of low viscosity products in intermediate bulk containers.





The equipment is designed for use with "Shutz" 1,000 litre intermediate bulk containers where product requires high flow and high shear, for viscosities to 1,000 centipoises.





Please see "More Information" below.




More Information

Details

Applications

  • Liquid Blending
  • De stratification Solid Re-Suspension
  • Liquid Homogenisation
  • Vessel Cleaning

Materials of Construction

  • Mixer Bridge: Stainless Steel 304 Grade with forklift pockets and plug pocket, suit spanning of the IBC frame, forklift relocatable.
  • Wetted Parts: Stainless Steel 316 Grade.

Motor

  • 0.75kw electric motor @ 1400 rpm single phase - Totally Enclosed - IP56 Protection Standard.

Voltage

  • Available in 240 & 415 volt.

Shaft

  • Shaft support nosecone and bearing, with hollow shaft coupling for easy connect.
  • Stainless steel shaft, 25.4mm diameter, 316 stainless steel.

Impeller

  • Single level propeller.
  • 130mm diameter (easily passes the 150mm top port in the IBC).
  • 316 Stainless Steel.

Total Weight

  • 35Kg

Options

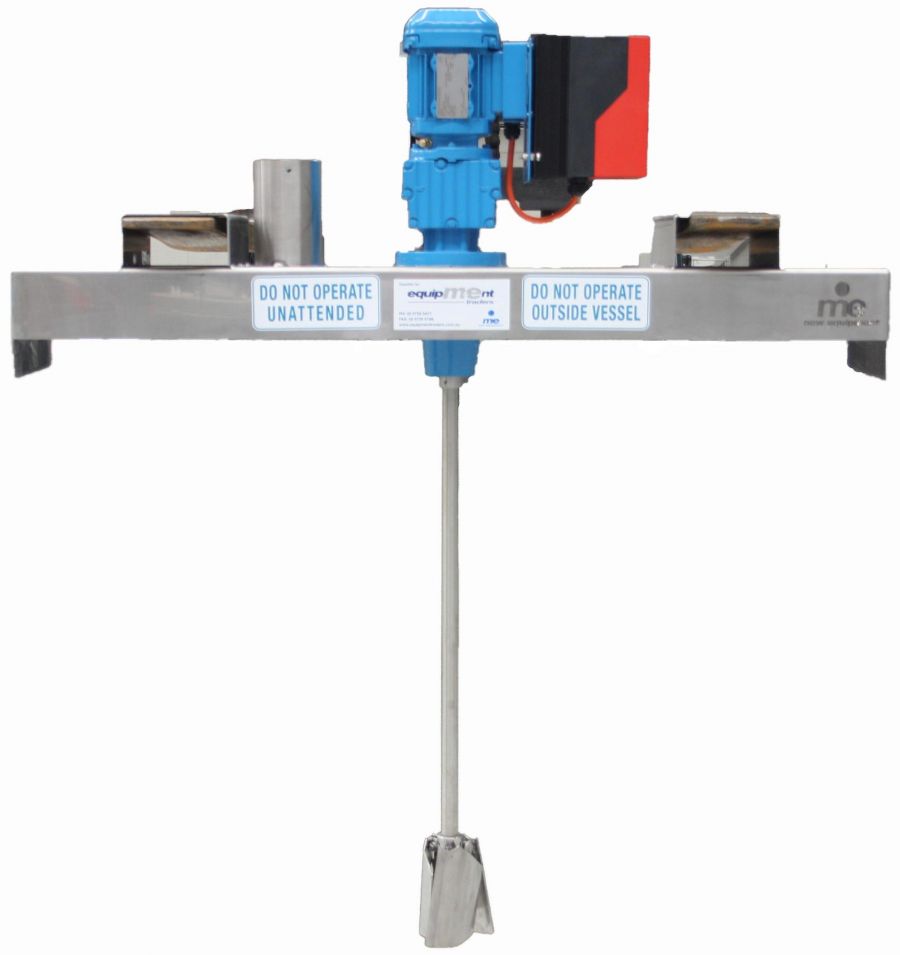

  • A Slow Speed Mixer With Gear Box & Large Folding Impeller Available For Higher Viscosity Products.
  • Frequency Inverter Can Be Fitted For Speed Control.
  • Electrical Plug & Lead.
