Screw Auger Conveyors



Item No. CSI-114-2700T

ME New Equipment Inclined Stainless Steel Screw Auger Conveyor is designed for the conveying of loose free flowing products. The conveyor is suitable for the food, chemical, pharmaceutical and general industries.



Download Brochure

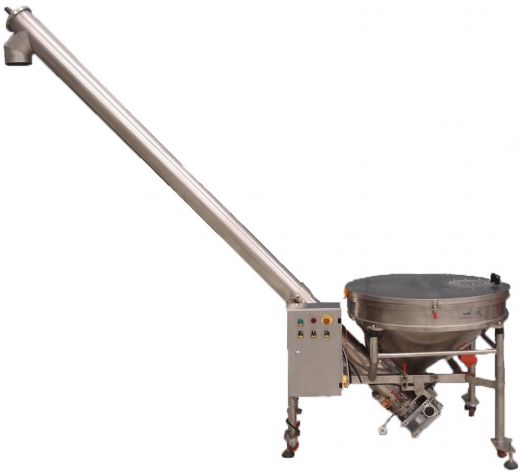

Inclined Stainless Steel Screw Auger Conveyor





Conveying Dense Soda Ash



Conveying Aluminium Sulphate Granules



Applications

Suitable for distributing powder & granular products into packaging and blending equipment. Some examples of products conveyed are:

  • Milk Powder
  • Sugar
  • Coffee beans / Coffee grounds
  • Dextrose
  • Chemical Powders
  • Food Additives
  • Seasonings

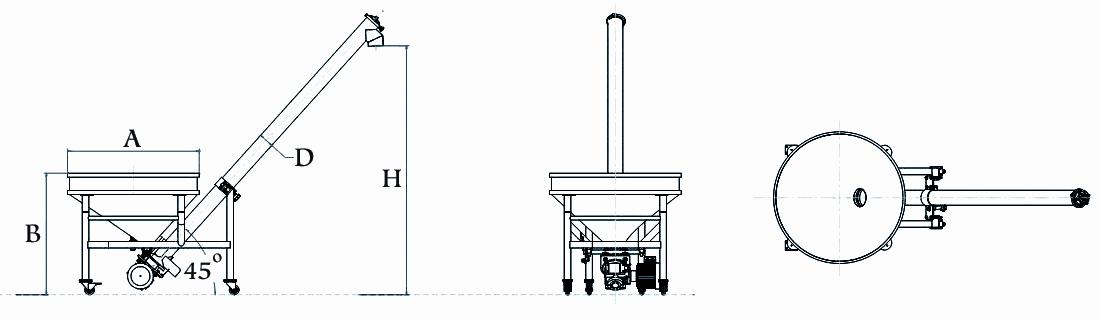

Drawing





 Technical Specifications

 Model  CSI-114-2700T  CSI-168-2500
  Lift Capacity   3 - 5 cubic meters per hr   8-10 cubic meters per hr
  Hopper Volume   230Lt   230Lt
  Conveyor Height (H)   2700mm   2500mm
  A   970mm   970mm
  B   910mm   910mm
  Screw Diameter (D)   114mm   168mm
  Motor   Auger 2.2Kw, Vibrating 70 Watts   Auger 3.0Kw, Vibrating 70 Watts
  Voltage   415V / 50Hz, 3 Phase   415V / 50Hz, 3 Phase
  Machine Weight   165Kg   200Kg



Additional Features

  • Constructed from polished 304 grade stainless steel.
  • Easy dismantling for cleaning requiring no tools.
  • Conveyor fitted with electrical control board in stainless steel enclosure.
  • Stainless steel hopper fitted with electric vibratory motor to eliminate product from bridging.
  • Stainless steel safety net.
  • Stainless steel hinged dust cover.
  • Auger Trolley for lowering and removing flight for easy cleaning
  • Unit is mobile, fitted on lockable casters.


Optional Features

  • Blender agitator for anti-bridging
  • Customised augers built to clients requirements.

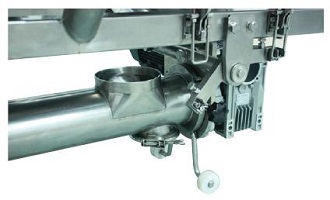

Auger Trolley

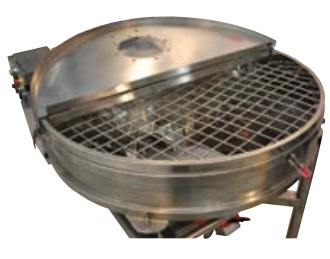

Stainless Steel Safety Net
