Accumulation Table with Inclined Belt Conveyor

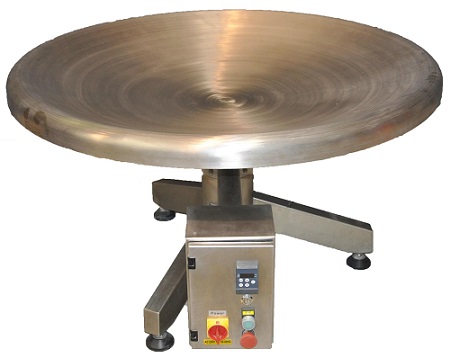

ACCUMULATION TABLE

Item No. PAT-1200

Unit is an Accumulation Table designed for the collection of bagged product. The table and frame is constructed from 304 grade stainless steel. The table is driven by a 0.18kW 415V electric gear motor which is speed controlled by a 240-415V electric Schneider frequency inverter. Speed: 160 Bags/min (with controller). All electrical controls are fitted inside a stainless steel weatherproof enclosure.

  • Table is a 6mm dished stainless steel plate.
  • Constructed from 304 grade stainless steel.
  • Stainless steel weatherproof electrical enclosure.
  • Schnider 240V to 415V frequency controller.
  • Adjustable feet.



ACCUMULATION TABLE

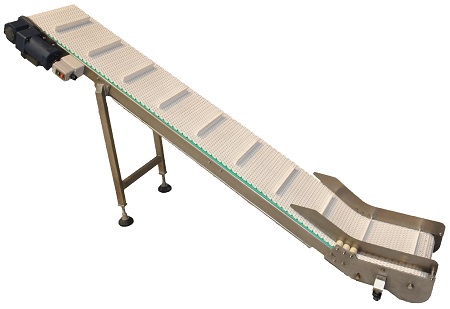

Inclined Belt Conveyor

Item No. CIC-300x900

Stainless steel constructed food grade inclined cleated conveyor fitted with modular plastic belting.

  • Product Discharge height: 900mm
  • Belt dimensions: 300mm W x 2000mm L
  • Motor: 120 Watt/240V/50Hz

Conveyor has adjustable feet on the discharge end and swivel castors at infeed end for easy maneuverability.
Designed to feed packaged products onto our new stainless steel accumulation table model PAT-1200.



INCLINED BELT CONVEYOR
