Storage Tanks

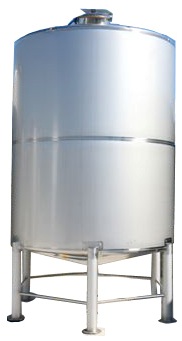

Stainless Steel Tank



M&E Equipment holds a constant stock of 304 & 316 Grade Stainless Steel Tanks which are suitable for most industries, such as food, chemical, beverage, pharmaceutical etc.

As well as offering our standard range of tanks, M&E Equipment can design and build custom made tanks to suit our client's requirements. Additional tank features such as heating and cooling jackets, agitation and internal baffles are offered. Tanks can also be constructed to any design required. All tanks are Australian made.

All our standard storage tanks have the following features:

Technical Specifications

  • Totally enclosed concentric top complete with 440mm diameter clamped man-way.

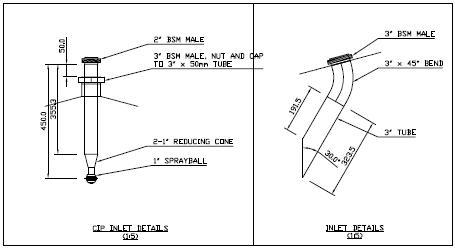

  • Removable stainless steel centre mounted CIP spray ball.
  • Top mounted product in feed tube.
  • 150mm diameter top mounted BSM male fitting to allow for vent if required.
  • 15 degree concentric bottom fitted with 75mm BSM male fitting on outlet.
  • Stainless steel legs with cross bracing on compensation pads.
  • Material 2B finish.
  • Free standing tank on stainless steel legs with 6mm thick base plates.
  • All welds are laid and passivated, external welds are stripped buffed.
  • Stainless steel pipe bridge to suit offset top mount agitator is optional.

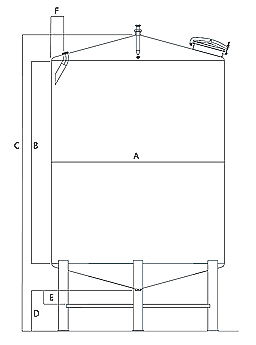

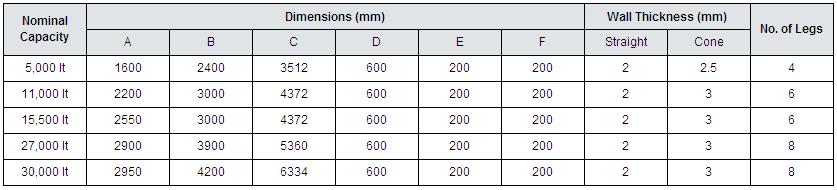

Tank Spec Tank Spec



 Tank Spec



Tank Spec
