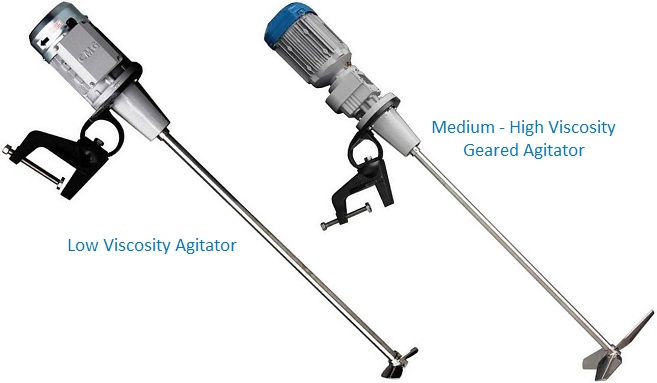

Clamp Mount Mixer-Agitator



Introducing a new range of Liquid Agitators / Mixers. Australian made and fabricated from the highest quality of materials. Agitators are reliable and durable in service.



Download Brochure



Features

Motors & Gears

  • Are of the highest standards and meet energy efficient standards.
  • Available in 3 phase or single phase in all models.

Nose Cone

  • Integrated shaft support bearing & lip seal. Supports the shaft loads and provides excellent sealing against oil contamination.
  • Shaft connection is quick and reliable.

Clamp Mountings

  • Heat treated Aluminium construction for light weight, high strength and corrosion resistant.
  • Positioning in vessel is a full 360 degree swivel with a full 90 degree tilt from horizontal to vertical.
  • Clamps to surfaces as wide as 100mm and as low as 5mm.
  • Stainless steel fasteners.

Shafts

  • 316 grade stainless steel, centre less ground as standard.
  • Standardised to the largest diameter available (25.4mm).

Impellers

  • To suit all applications.
  • All are constructed from 316 grade stainless steel.
  • High flow + high shear ("marine" propeller execution).
  • High flow + low shear (fluid foil execution).
  • High flow in high viscosity (wide blade fluid foil execution).
